Rælclear

Changing the norms of communication

The transparent interface Rælclear is a device that connects all forms of human-to-human communication.

The transparent interface Rælclear is a device that connects all forms of human-to-human communication.

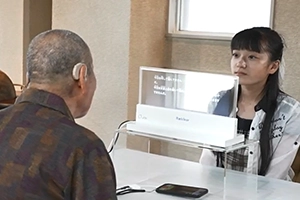

01 Enjoy communicating while observing facial expressions

The transparent interface Rælclear is placed between you and the person you are facing, and a transcription system is used. When you speak to the person facing you, the voice input from the microphone to the PC, tablet, or smartphone is converted into text, which is displayed on Rælclear, the second monitor. Because Rælclear has high transparency and can be viewed from both sides, one can read the text-converted conversation content while looking at the expression and gestures of the person speaking, which improves the listener's understanding. This is highly valued as a communication aid not only for the deaf, hard of hearing, and those with APD/LiD, but also for the elderly.

Enjoy communicating while observing facial expressions

02 Facilitating communication between different languages

By using the translation function of the transcription system, it can also be useful for communication between people with different native languages. As global communication expands, it can be a great help in cross-language communication.

Facilitating communication between different languages

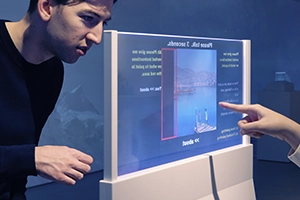

03 Supporting more understandable information presentation and space design

The high transparency of Rælclear is also expected to be applied to AR-like uses. By placing Rælclear between not only people but also objects and landscapes and displaying information and effect images associated with them, it will possible to create a production aimed at increasing value.

Supporting more understandable information presentation and space design
Rælclear

Rælclear’s name was born from its unique two-way transparency: starting from the letter “c”, Rælclear reads as “clear” in both directions. With the world’s highest transparency and two-way viewability, Rælclear enables brand-new display applications.

Rælclear Specifications

RælclearⅠ (12.3”) Rælclear II (20.8”)
Resolution 1,440 x 540 1,280 x 720
Diagonal size 12.3” 20.8”
Display area size Horizontal:291.6 mm
Vertical:109.35 mm
Horizontal:460.8mm
Vertical:259.2mm
Pixel density 125ppi 71ppi
Color representation method Field-sequential color drive Field-sequential color drive
Transparency(when display off) 84% 80%
Center brightness 150cd/m2 300cd/m2
Contrast ratio 25:1 30:1
Color depth Approx. 16.77 million colors (by error diffusion) Approx. 16.77 million colors (by error diffusion)
Display frequency
(LCD refresh rate)
60Hz
(180Hz)
120Hz
(360Hz)
Video input HDMI HDMI,(USB-C(DP Alt Mode))
Power supply USB-PD/45W(or more) USB-PD/100W
Other function Brightness adjustment(2 steps)
Horizontal image inversion
Brightness adjustment(5steps),
Color inversion
Horizontal image inversion,
Vertical image inversion

Transcription system software, PC, tablet, etc., must be prepared separately by the customer.Please use it after fully understanding the terms of use.

Devices to be connected (Please use the latest OS version of the device.)
OS:Windows、Mac
Smart Phone、Tablet: iPhone、 iPad (Not compatible with Android)

*1Rælclear’s “a” uses a phonetic symbol instead of “a” and “e”. Ralclear is a trademark of Japan Display Inc.

*2To solve the issues, the research group led by Associate Professor Yoichi Ochiai, Digital Nature Laboratory at the University of Tsukuba, and JDI jointly developed “See-Through Captions”.
See-Through Captions Project page
Kenta Yamamoto, Ippei Suzuki, Akihisa Shitara, and Yoichi Ochiai. 2021. See-Through Captions: Real-Time Captioning on Transparent Display for Deaf and Hard-of-Hearing People.
In The 23rd International ACM SIGACCESS Conference on Computers and Accessibility(ASSETS ’21).
https://assets21.sigaccess.org/accepted_posters.html

*3Transcription system software, PC, tablet, etc., must be prepared separately by the customer.Please use it after fully understanding the terms of use.

*4Devices to be connected (Please use the latest OS version of the device.)
PC: Windows, Mac
Smart Phone, Tablet : iPhone, iPad (Not compatible with Android)

Activities

Jan 28, 2026

Rælclear Used at Multiple Venues for “World Subtitle Exhibition in Tokyo:Making Communication Accessible Everywhere”

This case study is based on insights gained from an on-site visit conducted on December 2, 2025.

From November 15 to December 7, 2025, “World Subtitle Exhibition in Tokyo”, JDI transparent interface Rælclear was installed at multiple facilities as one of the display solutions for “YYSystem,” a communication support application developed by AISIN CORPORATION (hereinafter referred to as “AISIN”).

This event was organized by AISIN as part of the “Subtitles the World” and took place across multiple locations in Tokyo, the host city of the Deaflympics. Subtitles were provided in public transportation facilities, commercial complexes, and other venues. The event was held as a participatory initiative with the aim of creating a society in which everyone can access information with confidence, including people who are deaf or hard of hearing, as well as inbound visitors and others who may face barriers with audio-only communication. This initiative was implemented at more than 80 locations throughout Tokyo, where smooth communication was enabled through the use of subtitles and translation technologies. Among these, we visited two facilities to learn how Rælclear is being utilized.

1. YOMIURILAND

At YOMIURILAND, which welcomes a wide range of visitors from both Japan and overseas, Rælclear was installed at the information counter and the central ride ticket office. In particular, a 20.8-inch Rælclear was used at the information counter and was utilized to support communication with international visitors. According to the staff, “While we do have some employees who can assist in English, the number is limited. In situations where it is difficult to provide support, we make use of Rælclear.” Through Rælclear, we felt that visitor guidance was being provided smoothly and effectively.

透明ディスプレイ レルクリア 活動事例

YOMIURILAND

透明ディスプレイ レルクリア 活動事例

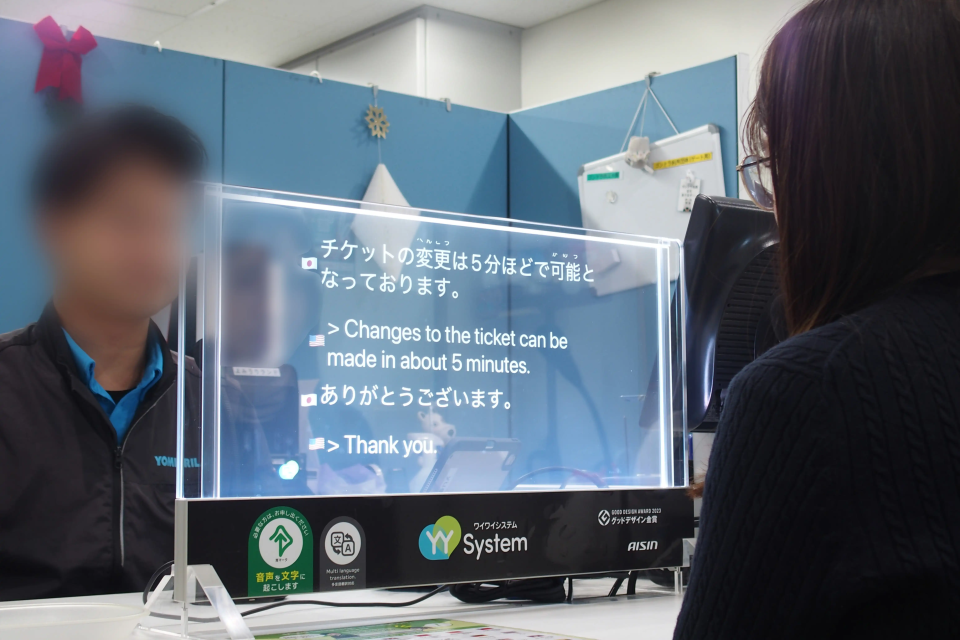

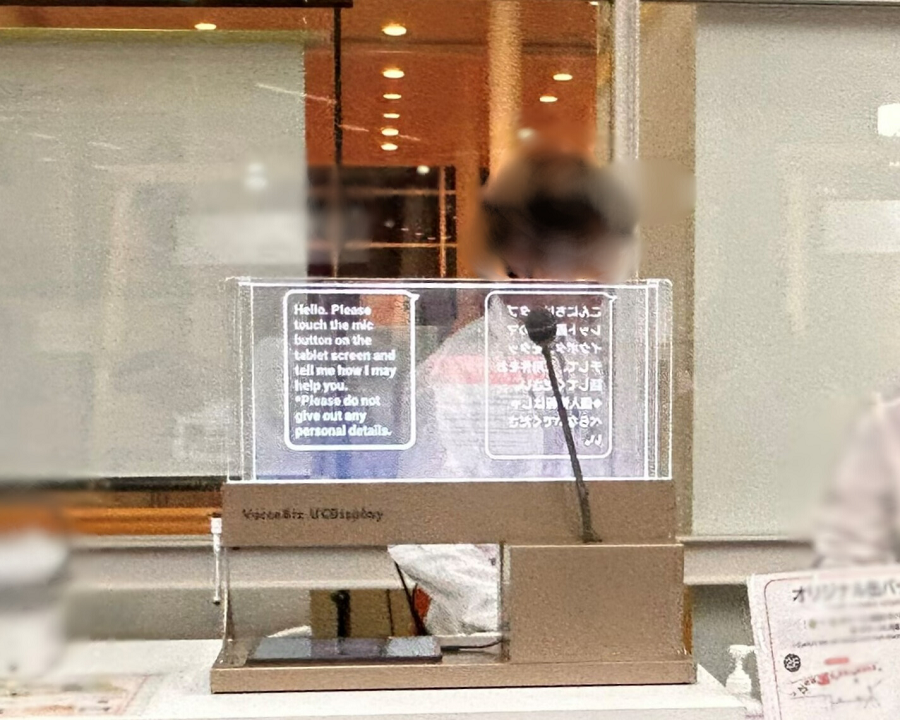

Information Counter (20.8 inch)



2. TOKYU PLAZA HARAJUKU “HARAKADO”   Lemonlife Co., Ltd

At LEMONLIFE WORK&SHOP, a select shop attached to the design company Lemonlife Co., Ltd. on the 3rd floor of HARAKADO, a new landmark in Harajuku, a 12.3-inch Rælclear was installed at the checkout counter. According to the staff, “Given Harajuku’s location, HARAKADO attracts a large number of international visitors, so we frequently use it when communicating with overseas customers.” The shop also sells clothing, and they commented, “It’s helpful because even brief conversations—such as while staff are folding clothes and placing them in bags at the register—are displayed in text.” Through these uses, we felt that Rælclear is being effectively utilized as a catalyst for communication.

透明ディスプレイ レルクリア 活動事例

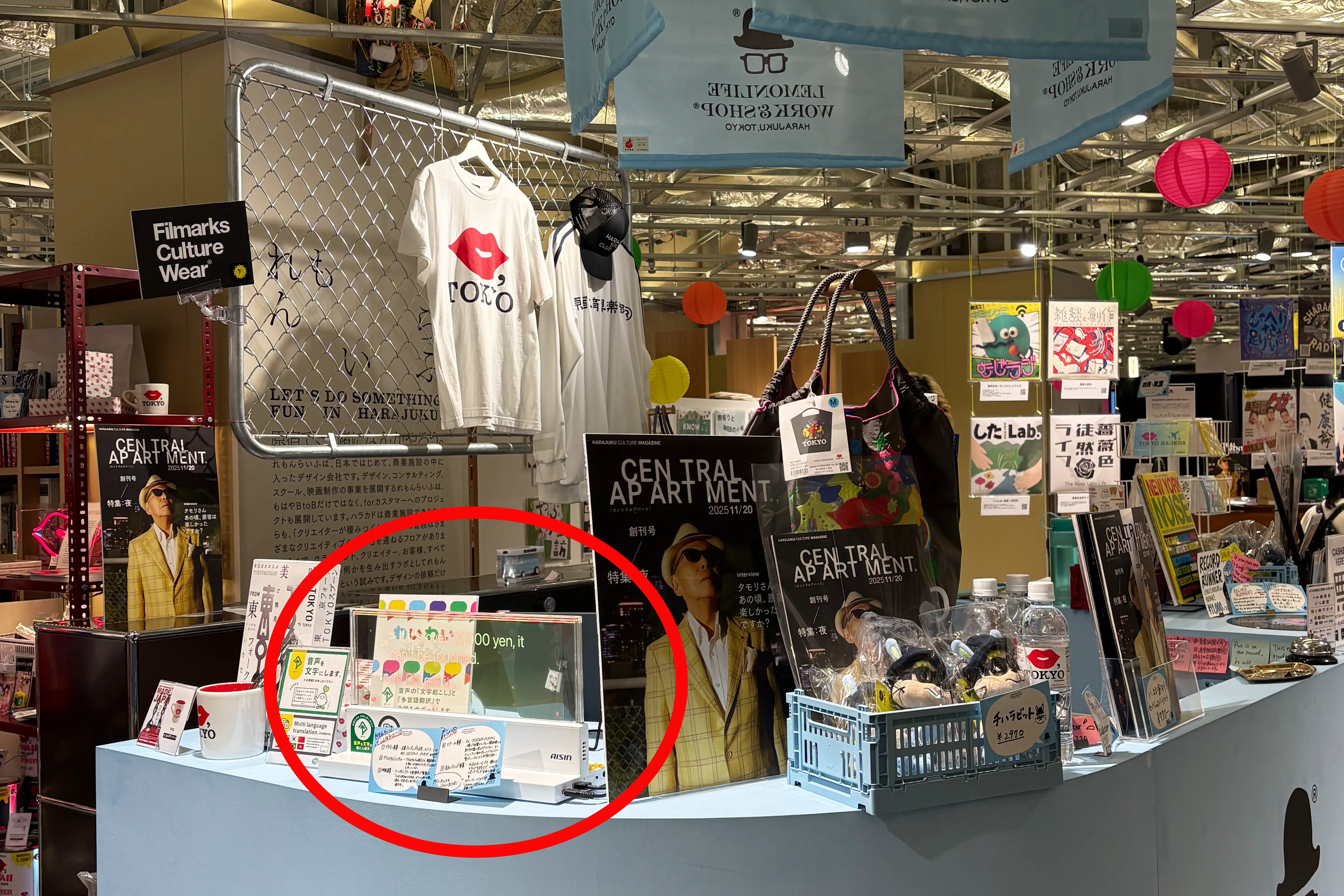

Rælclear seamlessly blends into its surroundings

透明ディスプレイ レルクリア 活動事例

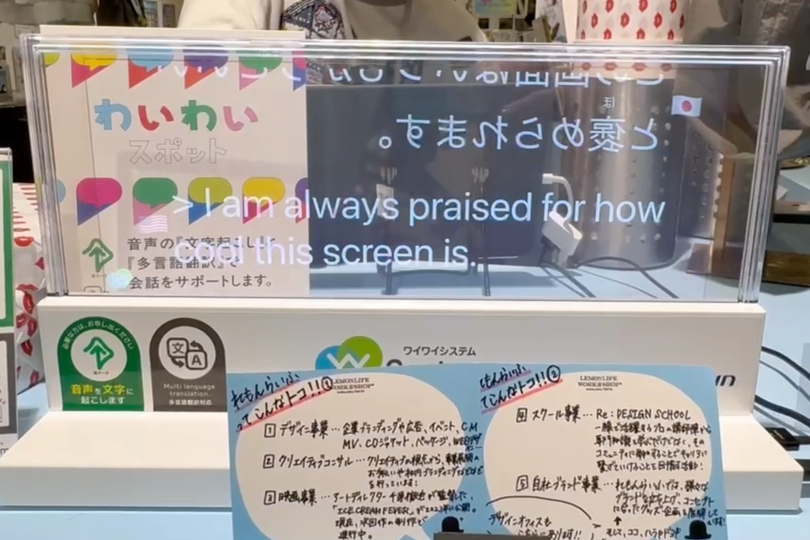

Rælclear supports communication at the checkout counter

At the two facilities we visited on this occasion, Rælclear was primarily used to support communication with international visitors. At YOMIURILAND, it was utilized as a means of accurately and reliably conveying information, while at Lemonlife Inc., it was used as a catalyst for fostering mutual understanding through dialogue. In addition, we felt that the use of Rælclear also provided a sense of reassurance for staff, enabling them to assist customers without concern for language barriers. As a transparent display for presenting speech-to-text and automatic translation applications, JDI will continue to support face-to-face communication through Rælclear and contribute to the realization of an inclusive society in which everyone can participate.


Dec 22, 2025

Rælclear Featured as a Universal Communication Solution at TOKYO 2025 DEAFLYMPICS and Showcased at MiruTech.

In alignment with the 25th Summer Deaflympics Tokyo 2025, held from November 15 to 26, MiruTech took place at the National Olympics Memorial Youth Center. The event showcased innovative digital technologies aimed at fostering connections among people, regardless of nationality or ability.  JDI presented its transparent interface, Rælclear, at the event.

When paired with software, Rælclear is designed to be placed between two people, displaying real-time transcriptions or translated text from speech. This creates a new communication experience, allowing users to follow conversations while still seeing facial expressions and gestures through the transparent interface.   The event attracted not only deaf athletes but also numerous members of the press and visitors, generating strong interest and positive feedback. Through this innovative solution, JDI proudly supports the DEAFLYMPICS’ vision of fostering an inclusive society.

1.Rælclear installed across Competition Venues at TOKYO 2025 DEAFLYMPICS

During the tournament, approximately 100 Rælclear units were installed across competition venues and Deaflympics Square, helping realize universal communication.

Rælclear Activities

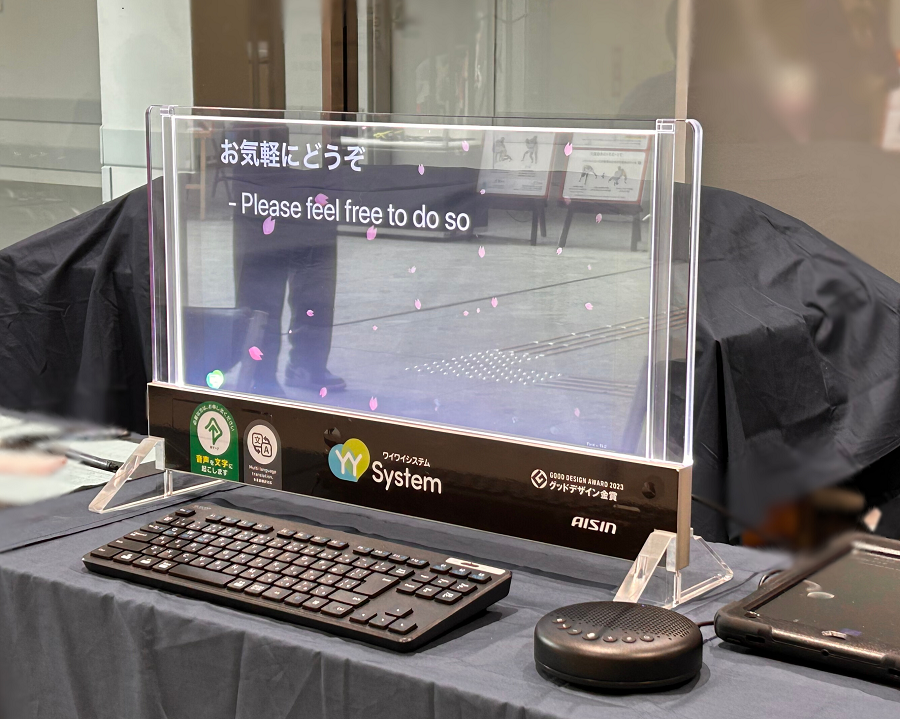

12.3-inch Face-to-Face at Komazawa Olympic Park General Sports Ground Gymnasium

Rælclear Activities

20.8-inch Universal Communication Experience Area at Komazawa Olympic Park General Sports Ground Gymnasium

Rælclear Activities

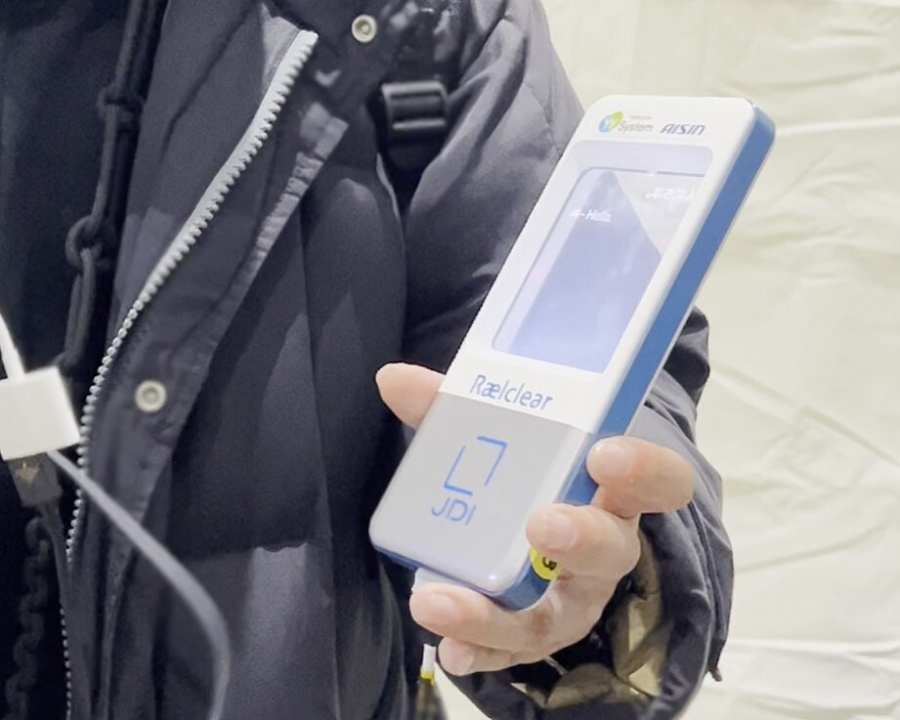

4-inch at Ota-City General Gymnasium

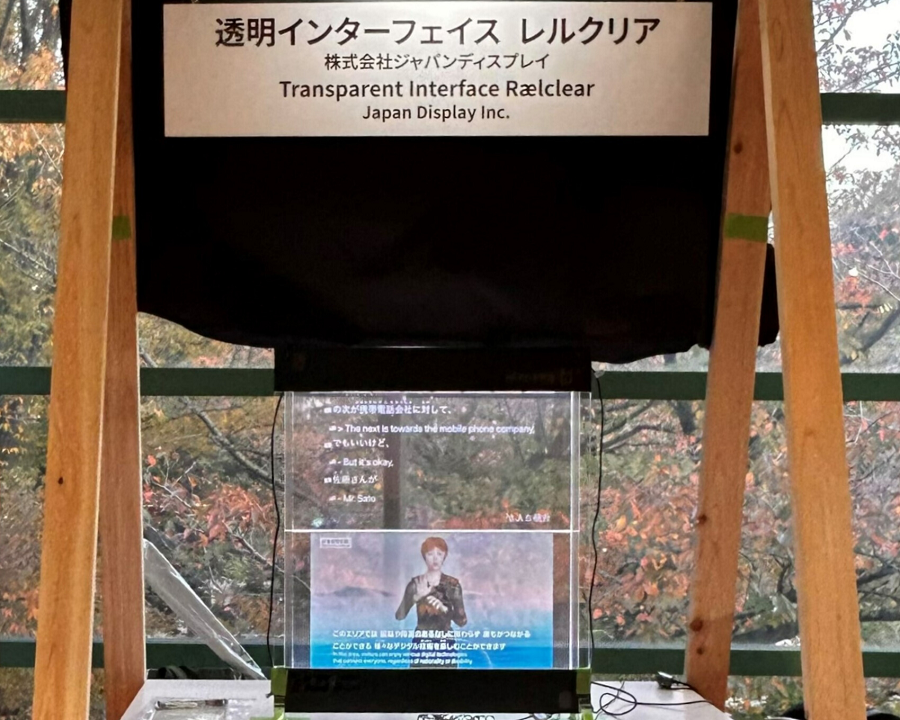

2.Showcased at MiruTech and Interlocution to Universal Communication Technology

Rælclear was showcased at MiruTech, where numerous visitors had the opportunity to experience its cutting-edge capabilities firsthand. Furthermore, it was featured as part of Tokyo’s pioneering initiatives in universal communication technologies.

Rælclear Activities

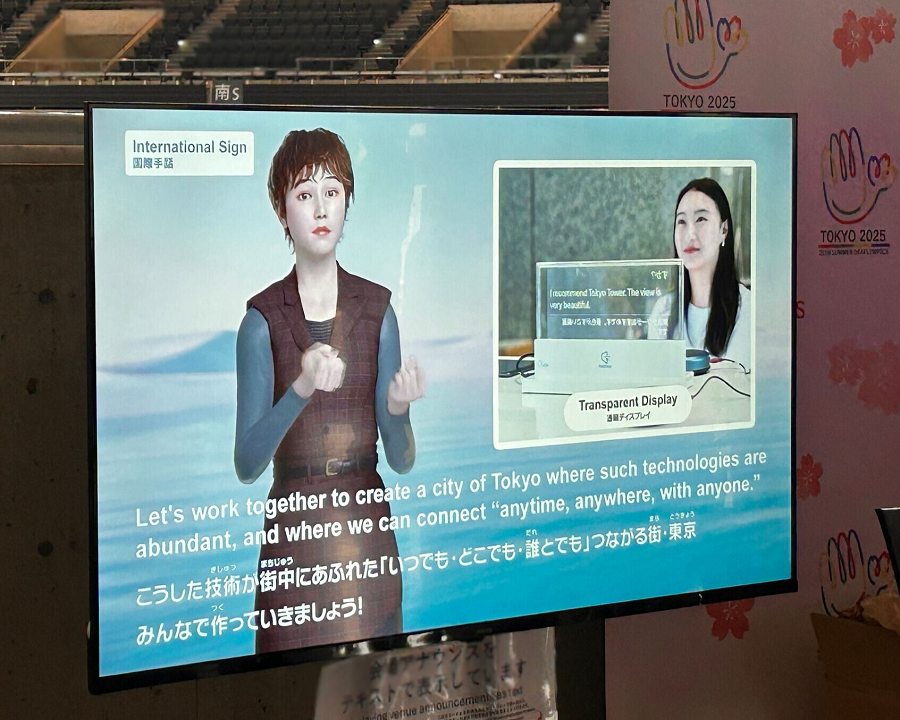

Introduction to Universal Communication Technology at Tokyo Metropolitan Gymnasium


Rælclear Activities

20.8-inch Dual-Tiled Display showcased at MiruTech

Rælclear Activities

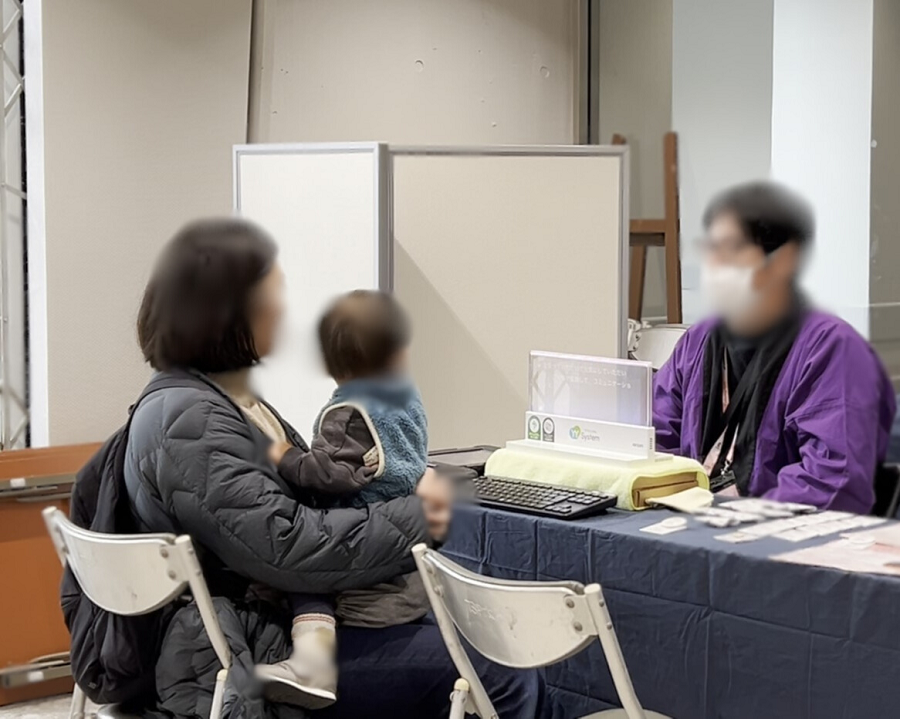

20.8-inch actively used at MiruTech reception


Jul 1, 2022

Donation to the Embassy of Ukraine in Support of Ukrainian Refugees

As part of support for Ukrainian refugees, we have donated a transparent display called Rælclear, which can be used as a bidirectional translation monitor, to the Embassy of Ukraine in Japan (Minato-ku, Tokyo), in collaboration with Ichigo Asset Management, Ltd.


ウクライナ避難民支援としてウクライナ大使館に寄贈



For inquiries about Rælclear, please contact us here.
